| Specification | Details |
|---|---|
| Series | 0.7MPa Series |
| Model | ZY-ZQFSQ-72-0.7 |
| Rated Voltage | 380V N~ |
| Power (kW) | 72 |
| Evaporation Capacity (kg/h) | 100 |
| Effective Volume (L) | <30 |
| Rated Steam Pressure (MPa) | 0.3/0.7 |
| Steam Generation Time (minutes) | 3-5 minutes |
| Applicable Water Pressure (MPa) | 0.15-0.4 |
| Steam Outlet Specification (0.3MPa) | DN25 External Thread |
| Steam Outlet Specification (0.7MPa) | DN25 External Thread |
| Water Inlet Specification | DN15 External Thread |
| Drain Outlet Specification | DN25 External Thread |
| Steam Temperature (°C) | 100-171 |
| Dimensions (mm) | 600×600×1050 |
| Packaging Method | Honeycomb Carton Box |
| Net Weight (kg) | 100 |
| Leakage Protection Reference Specification | 160A/4P |
| Copper Cable Reference Specification | 50mm² |
| Aluminum Cable Reference Specification | 70mm² |

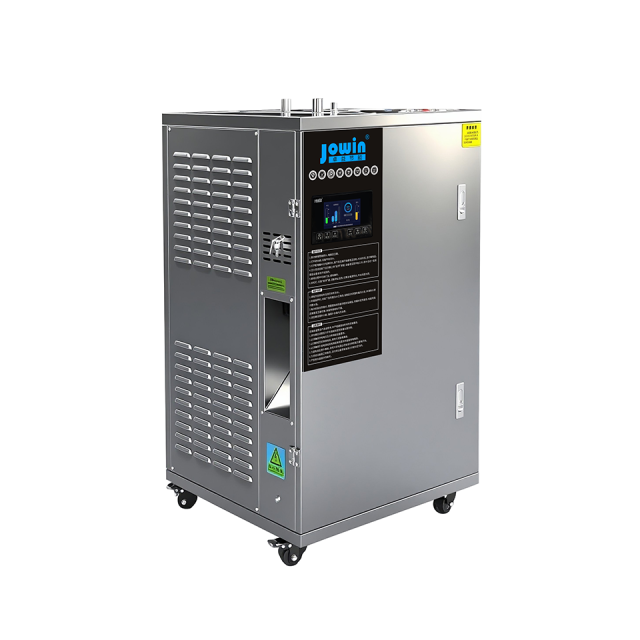

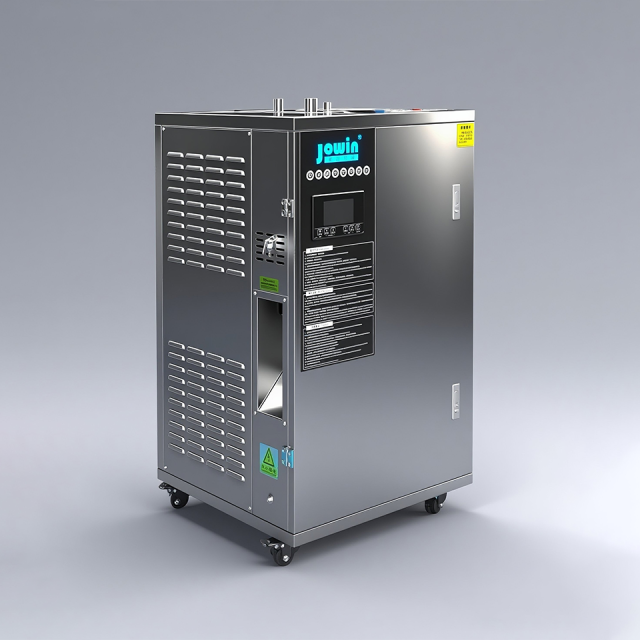

The ZY-ZQFSQ-72-0.7 Electric Steam Generator is engineered for industrial-scale food production, delivering exceptional performance with a powerful 72kW heating system and 100kg/h steam output. Designed to meet the rigorous demands of commercial kitchens, food processing plants, and large-scale bakeries, this unit ensures rapid steam generation, precise pressure control, and reliable operation for diverse applications. Its compact design and advanced safety features make it an ideal choice for facilities seeking efficiency, durability, and compliance with food safety standards.
High-Capacity Steam Output - Generates 100kg of food-grade steam per hour to support continuous production lines

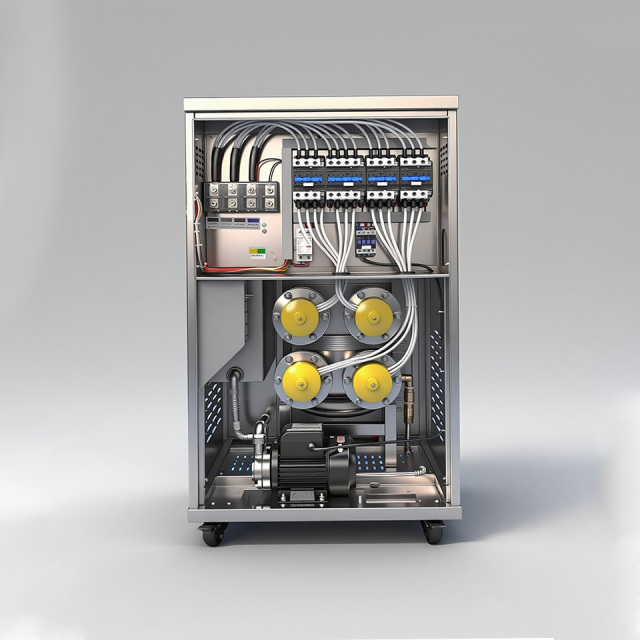

Industrial-Grade Heating System - 72kW power ensures consistent performance for demanding operations
Rapid Steam Generation - Ready-to-use steam within 3-5 minutes minimizes downtime and boosts productivity
Dual-Pressure Flexibility - Switch seamlessly between 0.3MPa and 0.7MPa settings to suit various food processing needs
Enhanced Safety Mechanisms - Equipped with 160A/4P leakage protection and robust electrical components for secure operation
Space-Efficient Design - Compact dimensions (600×600×1050mm) maximize utility in space-constrained environments
Ideal for industrial-scale baking, proofing, and steaming processes
Suitable for continuous cooking lines in food manufacturing plants
Effective for large-volume pasteurization and sterilization tasks
Perfect for central kitchens and catering facilities serving high-demand operations
Reliable for sanitizing equipment and food containers in production environments
Unmatched 100kg/h evaporation capacity supports high-throughput production schedules
Heavy-duty 50mm² copper wiring ensures stable power delivery under continuous use
Standardized DN15/DN25 connections simplify installation and integration
Food-safe steam production (100-171°C) complies with hygiene and quality standards
Durable construction minimizes maintenance needs and extends service life
For food manufacturers seeking a reliable, high-performance steam solution, the ZY-ZQFSQ-72-0.7 combines power, precision, and durability to meet the most challenging production demands. Contact us for customization options and volume pricing.
